How to import sample data into p:IGI+ from Metis

You can import sample-level data into p:IGI+ from various sources and file types. The simplest method is to use the built-in Metis database connection to link to either an IGI-hosted public geochemical database or a private company geochemical database.

Importing data via a Metis link

Step 1: Connect to Metis

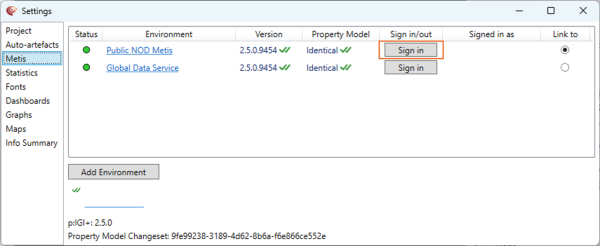

Go to Settings Edit settings… from the software’s top menu bar.
In the Settings window, select the Metis tab.
Select the Link to radio button for your desired Metis server, and then click Sign in.
Enter your login credentials.

Your name will appear under the Signed in as header once you’re connected.

Step 2: Create a Metis Link

Go to the Metis Create Metis link… from the software’s top menu bar.

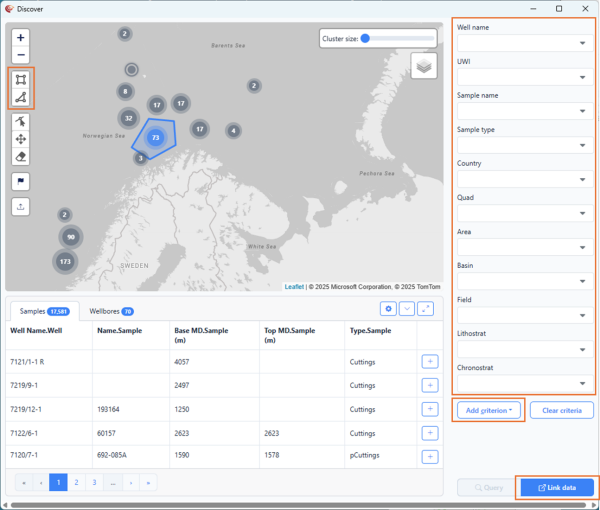

This opens the Metis Discover interface, where you can query data using the

Polygon select from the map
Quick search fields presented to the right of the map
Add criterion menu, gaining access to the whole property model

Step 3: Import geochemical samples to p:IGI+

Once geochemical data has been discovered, click Link data.

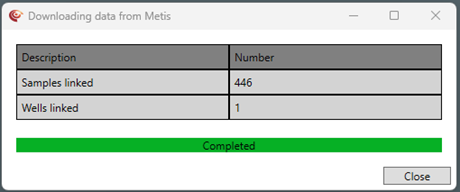

Wait for the progress bar to show ‘Completed’.

A summary of linked samples and wells will appear.

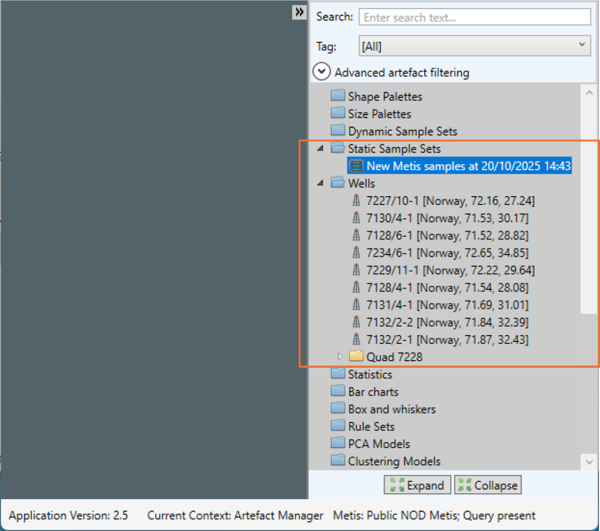

Close the window. Your data are now imported and linked through to p:IGI+. You will notice a new static sample set of all the samples brought in, along with any new wells generated in the Wells folder.

Note: The imported data from Metis is linked through to p:IGI+. This links records both the sample IDs and the search query. A user can therefore check for updates to samples or view/edit the Metis link in the future. Both actions are available from the Metis menu.
